      Vacuum Pump

      Labdex Vacuum Pump provide air and gas removal for vacuum environments in laboratories, research and industry, enabling degassing, filtration, drying and using diaphragm, dry scroll and rotary vane systems. Integrated air exchange bin, filtration, gas ballast, and air cooling protection ensure safe performance.

      Belt-Drive Vacuum Pump

      Circulating Vacuum Pump

      Diaphragm Vacuum Pump

      Double Stage Rotary Vane Vacuum Pump

      Single Stage Rotary Vane Vacuum Pump
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX100BVP

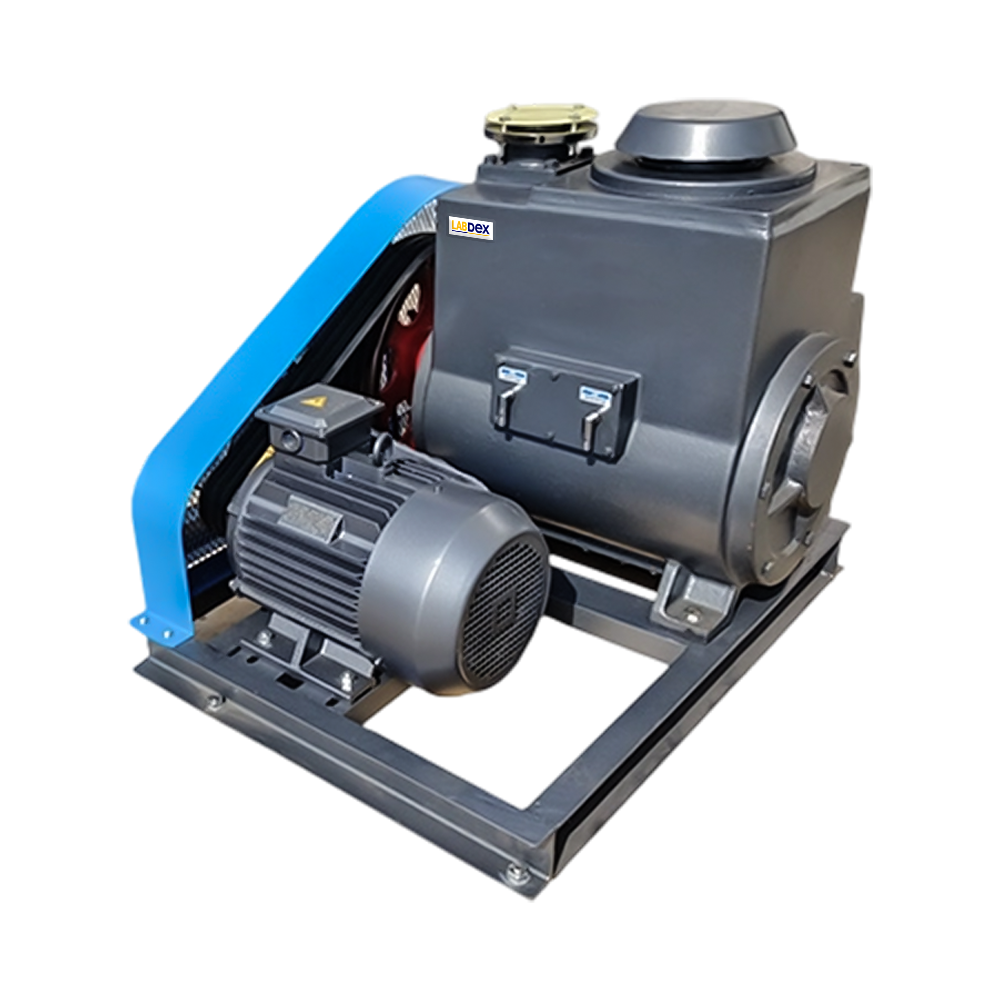

      Belt-Drive Vacuum Pump LX100BVP
      • Rotary speed: 450 RPM
      • Oil capacity: 1 L
      • Flow rate: 15 m³/h
      Catalog
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX101BVP

      Belt-Drive Vacuum Pump LX101BVP
      • Rotary speed: 320 RPM
      • Oil capacity: 2 L
      • Flow rate: 30 m³/h
      Catalog
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX102BVP
      Belt-Drive Vacuum Pump LX102BVP
      • Rotary speed: 320 RPM
      • Oil capacity: 2.8 L
      • Flow rate: 60 m³/h
      Catalog
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX103BVP
      Belt-Drive Vacuum Pump LX103BVP
      • Rotary speed: 320 RPM
      • Oil capacity: 3 L
      • Flow rate: 110 m³/h
      Catalog
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX104BVP

      Belt-Drive Vacuum Pump LX104BVP
      • Rotary speed: 420 RPM
      • Oil capacity: 4.2 L
      • Flow rate: 255 m³/h
      Catalog
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX105BVP

      Belt-Drive Vacuum Pump LX105BVP
      • Rotary speed: 360 RPM
      • Oil capacity: 5 L
      • Flow rate: 300 m³/h
      Catalog
      Belt-Drive Vacuum Pump : Belt-Drive Vacuum Pump LX106BVP
      Belt-Drive Vacuum Pump LX106BVP
      • Rotary speed: 400 RPM
      • Oil capacity: 5 L
      • Flow rate: 360 m³/h
      Catalog
      Circulating Vacuum Pump : Circulating Vacuum Pump LX200CVP
      Circulating Vacuum Pump LX200CVP
      • Capacity of tank: 15 L
      • Flow rate: 60 L/Min
      • Maximum pressure: 0.098 Mpa
      Catalog
      Circulating Vacuum Pump : Circulating Vacuum Pump LX201CVP

      Circulating Vacuum Pump LX201CVP
      • Capacity of tank: 15 L
      • Flow rate: 60 L/Min
      • Maximum pressure: 0.098 Mpa
      Catalog
      Circulating Vacuum Pump : Circulating Vacuum Pump LX202CVP

      Circulating Vacuum Pump LX202CVP
      • Capacity of tank: 50 L
      • Flow rate: 60 L/Min
      • Maximum pressure: 0.098 Mpa
      Catalog
      Circulating Vacuum Pump : Circulating Vacuum Pump LX203CVP
      Circulating Vacuum Pump LX203CVP
      • Capacity of tank: 50 L
      • Flow rate: 60 L/Min
      • Maximum pressure: 0.098 Mpa
      Catalog
      Circulating Vacuum Pump : Circulating Vacuum Pump LX204CVP
      Circulating Vacuum Pump LX204CVP
      • Capacity of tank: 50 L
      • Flow rate: 60 L/Min
      • Maximum pressure: 0.098 Mpa
      Catalog
      Circulating Vacuum Pump : Circulating Vacuum Pump LX205CVP

      Circulating Vacuum Pump LX205CVP
      • Capacity of tank: 60 L
      • Flow rate: 160 L/Min
      • Maximum pressure: 0.098 Mpa
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX300DVP

      Diaphragm Vacuum Pump LX300DVP
      • Pumping speed: 15 L/Min
      • Pressure: 30 Positive or negative pressure
      • Ultimate vacuum: 250 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX301DVP
      Diaphragm Vacuum Pump LX301DVP
      • Pumping speed: 20 L/Min
      • Pressure: Negative pressure
      • Ultimate vacuum: 200 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX302DVP
      Diaphragm Vacuum Pump LX302DVP
      • Pumping speed: 20 L/Min
      • Pressure: Negative pressure
      • Ultimate vacuum: 200 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX303DVP

      Diaphragm Vacuum Pump LX303DVP
      • Pumping speed: 30 L/Min
      • Pressure: 30 Positive or negative pressure
      • Ultimate vacuum: 200 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX304DVP

      Diaphragm Vacuum Pump LX304DVP
      • Pumping speed: 30 L/Min
      • Pressure: 30 Positive or negative pressure
      • Ultimate vacuum: 200 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX305DVP
      Diaphragm Vacuum Pump LX305DVP
      • Pumping speed: 30 L/Min
      • Pressure: Negative pressure
      • Ultimate vacuum: 50 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX306DVP
      Diaphragm Vacuum Pump LX306DVP
      • Pumping speed: 30 L/Min
      • Pressure: Negative pressure
      • Ultimate vacuum: 50 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX307DVP

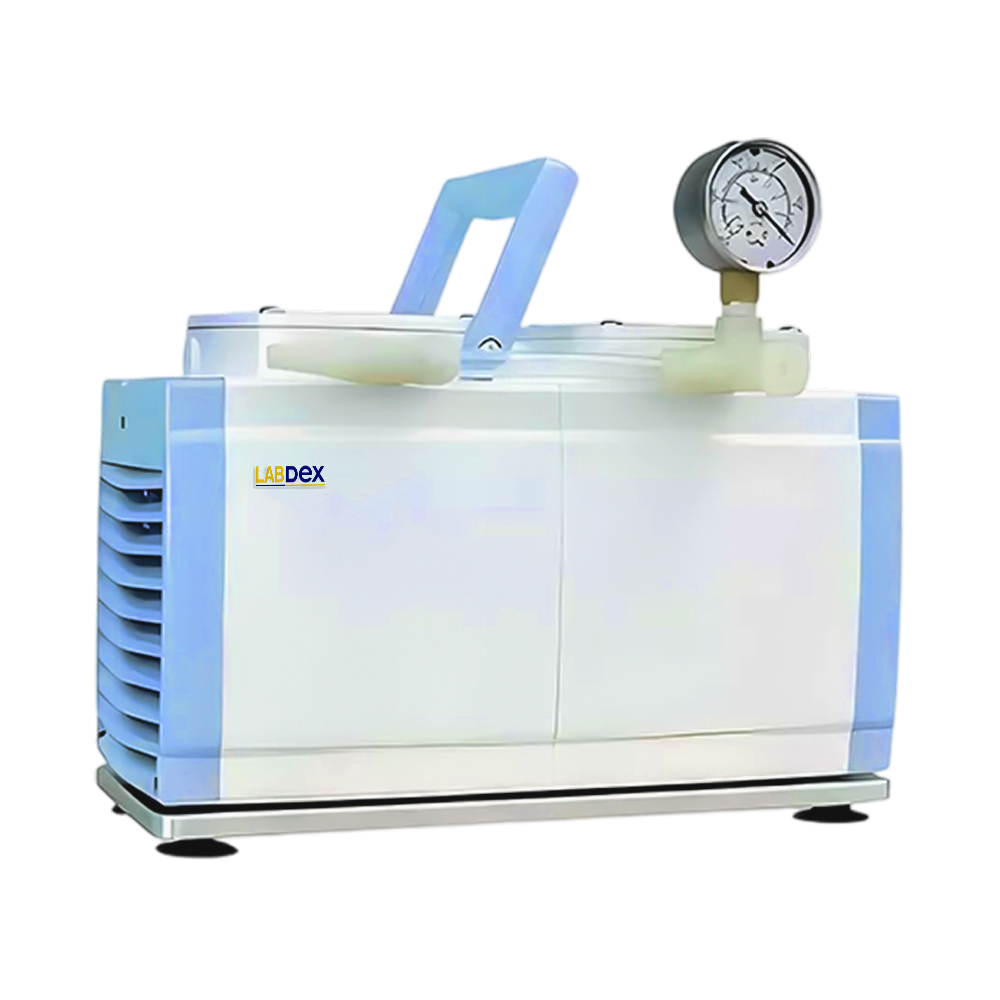

      Diaphragm Vacuum Pump LX307DVP
      • Pumping speed: 60 L/Min
      • Pressure: 30 Positive or negative pressure
      • Ultimate vacuum: 200 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX308DVP

      Diaphragm Vacuum Pump LX308DVP
      • Pumping speed: 60 L/Min
      • Pressure: 30 Positive or negative pressure
      • Ultimate vacuum: 200 Mbar
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX309DVP

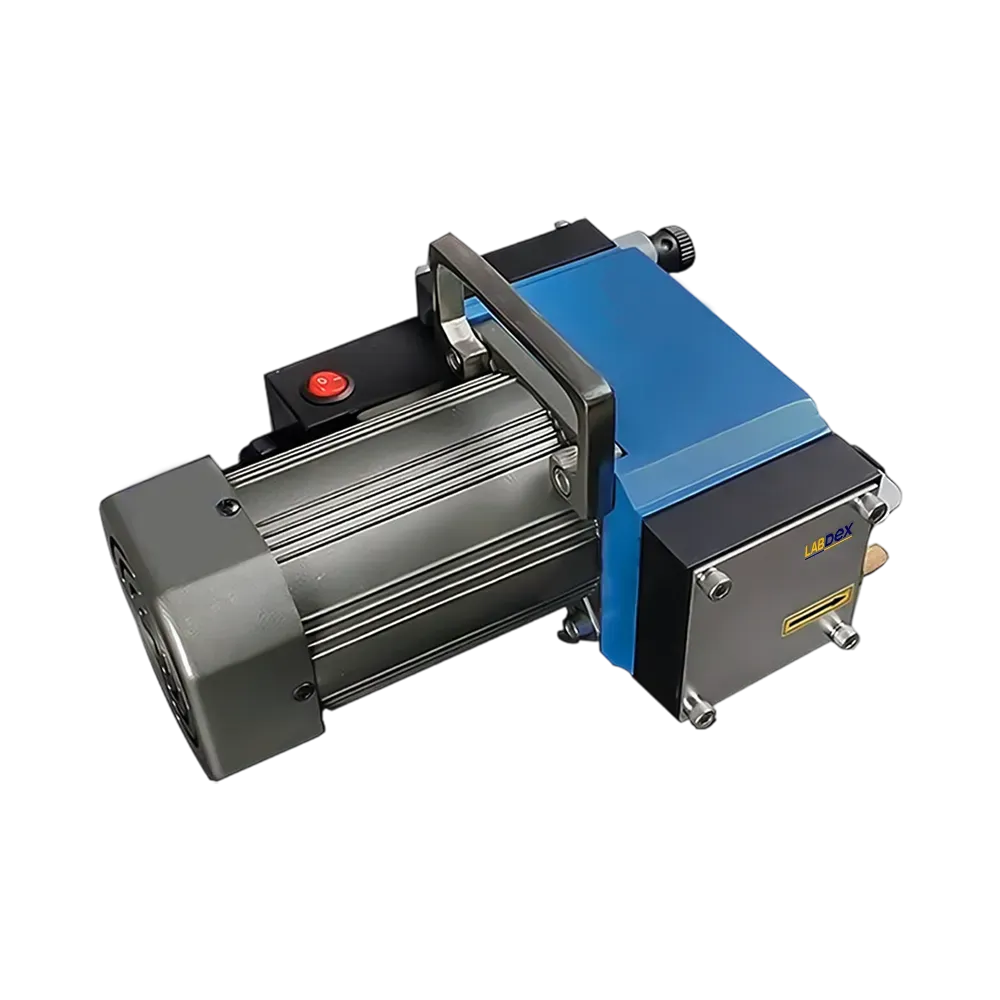

      Diaphragm Vacuum Pump LX309DVP
      • Pumping speed: 25 L/Min
      • Intense pressure: 50 Mbar
      • Ultimate vacuum: 0.095 Mpa
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX310DVP
      Diaphragm Vacuum Pump LX310DVP
      • Pumping speed: 25 L/Min
      • Intense pressure: 50 Mbar
      • Ultimate vacuum: 0.095 Mpa
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX311DVP

      Diaphragm Vacuum Pump LX311DVP
      • Pumping speed: 40 L/Min
      • Intense pressure: 50 Mbar
      • Ultimate vacuum: 0.095 Mpa
      Catalog
      Diaphragm Vacuum Pump : Diaphragm Vacuum Pump LX312DVP

      Diaphragm Vacuum Pump LX312DVP
      • Pumping speed: 45 L/Min
      • Intense pressure: 50 Mbar
      • Ultimate vacuum: 0.095 Mpa
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX500RVP
      Double Stage Rotary Vane Vacuum Pump LX500RVP
      • Flow rate: 3.6/60 m³/H
        4.3/72 L/Min
      • Oil capacity: 0.7 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 5 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX501RVP
      Double Stage Rotary Vane Vacuum Pump LX501RVP
      • Flow rate: 5.4/90 m³/H
        6.5/108 L/Min
      • Oil capacity: 0.7 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 5 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX502RVP

      Double Stage Rotary Vane Vacuum Pump LX502RVP
      • Flow rate: 9.9/165 m³/H
        12/200 L/Min
      • Oil capacity: 1.1 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 5 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX503RVP

      Double Stage Rotary Vane Vacuum Pump LX503RVP
      • Flow rate: 14.4/240 m³/H
        17.4/290 L/Min
      • Oil capacity: 1.2 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 5 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX504RVP
      Double Stage Rotary Vane Vacuum Pump LX504RVP
      • Flow rate: 24/336 m³/H
        28/403 L/Min
      • Oil capacity: 1.7 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 4 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX505RVP

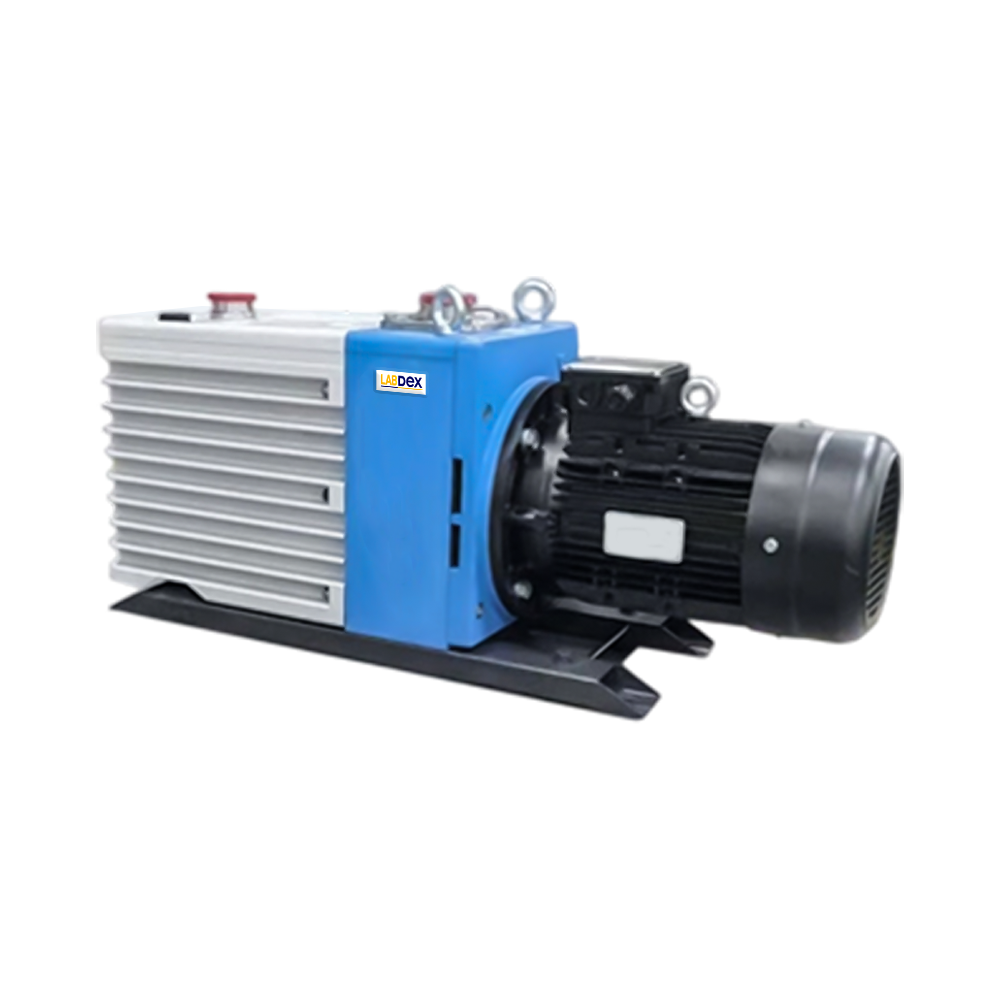

      Double Stage Rotary Vane Vacuum Pump LX505RVP
      • Flow rate: 30/500 m³/H
        36/600 L/Min
      • Oil capacity: 1.9 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 4 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX506RVP

      Double Stage Rotary Vane Vacuum Pump LX506RVP
      • Flow rate: 40/667 m³/H
        48/800 L/Min
      • Oil capacity: 2.1 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 4 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX507RVP

      Double Stage Rotary Vane Vacuum Pump LX507RVP
      • Flow rate: 60/1000 m³/H
        70/1200 L/Min
      • Oil capacity: 5 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 4 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX508RVP
      Double Stage Rotary Vane Vacuum Pump LX508RVP
      • Flow rate: 90/1500 m³/H
        108/1800 L/Min
      • Oil capacity: 5.5 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 4 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX509RVP
      Double Stage Rotary Vane Vacuum Pump LX509RVP
      • Flow rate: 160/2656 m³/H
        196/3254 L/Min
      • Oil capacity: 20 - 25 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 2 Pa (Gas ballast on)
      Catalog
      Double Stage Rotary Vane Vacuum Pump : Double Stage Rotary Vane Vacuum Pump LX510RVP

      Double Stage Rotary Vane Vacuum Pump LX510RVP
      • Flow rate: 255/4233 m³/H
        306/5080 L/Min
      • Oil capacity: 23 - 28 L
      • Ultimate vacuum: ≤ 5 x 10¯¹ Pa (Gas ballast off)
        ≤ 2 Pa (Gas ballast on)
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX400RVP

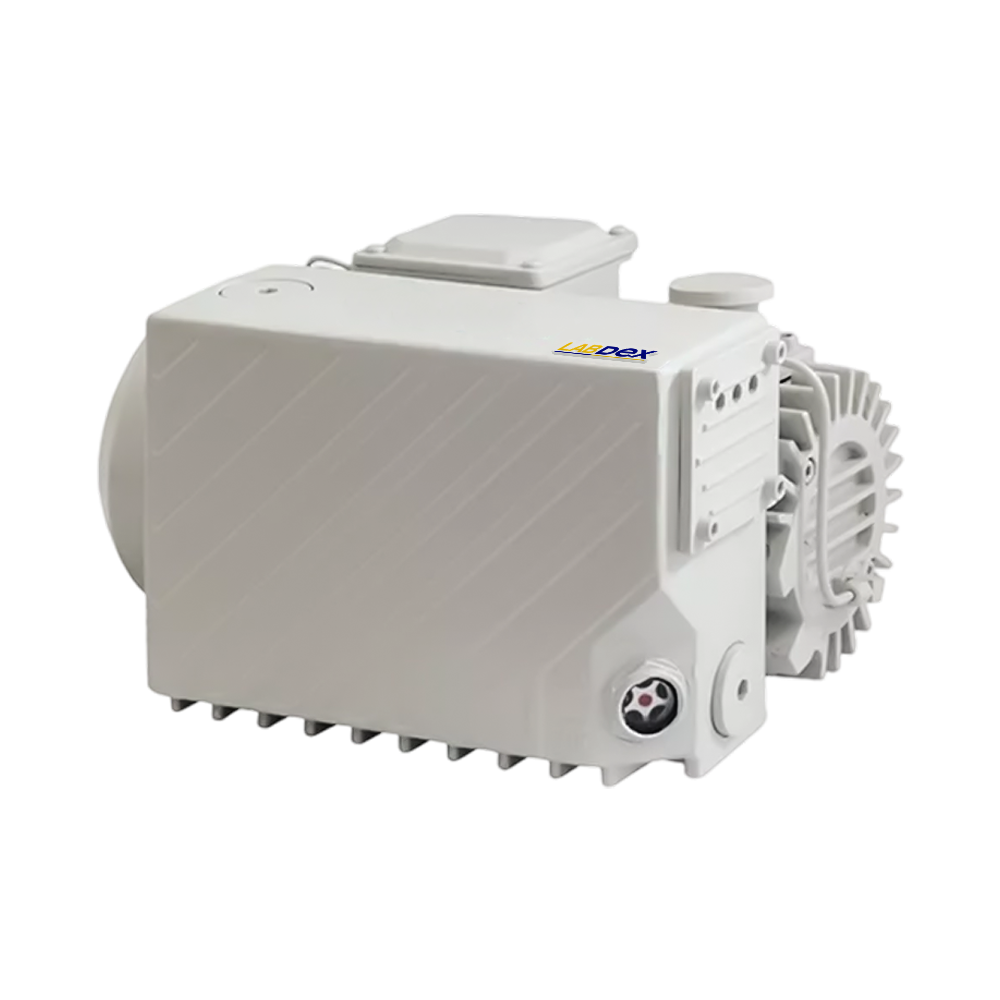

      Single Stage Rotary Vane Vacuum Pump LX400RVP
      • Pumping speed: 10 - 12 m³/H
      • Oil capacity: 0.3 L
      • Rotary speed: 2800 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX401RVP
      Single Stage Rotary Vane Vacuum Pump LX401RVP
      • Pumping speed: 16 - 19.2 m³/H
      • Oil capacity: 0.3 L
      • Rotary speed: 2800 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX402RVP
      Single Stage Rotary Vane Vacuum Pump LX402RVP
      • Pumping speed: 20 - 24 m³/H
      • Oil capacity: 0.5 L
      • Rotary speed: 2800 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX403RVP

      Single Stage Rotary Vane Vacuum Pump LX403RVP
      • Pumping speed: 25 - 30 m³/H
      • Oil capacity: 0.5 L
      • Rotary speed: 2800 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX404RVP

      Single Stage Rotary Vane Vacuum Pump LX404RVP
      • Pumping speed: 40 m³/H
      • Oil capacity: 1 L
      • Rotary speed: 1440 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX405RVP
      Single Stage Rotary Vane Vacuum Pump LX405RVP
      • Pumping speed: 63 m³/H
      • Oil capacity: 2 L
      • Rotary speed: 1440 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX406RVP
      Single Stage Rotary Vane Vacuum Pump LX406RVP
      • Pumping speed: 100 m³/H
      • Oil capacity: 2 L
      • Rotary speed: 1440 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX407RVP

      Single Stage Rotary Vane Vacuum Pump LX407RVP
      • Pumping speed: 160 m³/H
      • Oil capacity: 5 L
      • Rotary speed: 1440 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX408RVP

      Single Stage Rotary Vane Vacuum Pump LX408RVP
      • Pumping speed: 200 m³/H
      • Oil capacity: 5 L
      • Rotary speed: 1440 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX409RVP
      Single Stage Rotary Vane Vacuum Pump LX409RVP
      • Pumping speed: 250 m³/H
      • Oil capacity: 7 L
      • Rotary speed: 1440 RPM
      Catalog
      Single Stage Rotary Vane Vacuum Pump : Single Stage Rotary Vane Vacuum Pump LX410RVP
      Single Stage Rotary Vane Vacuum Pump LX410RVP
      • Pumping speed: 300 m³/H
      • Oil capacity: 7 L
      • Rotary speed: 1440 RPM
      Catalog
